1600S Scalper Screen

Gold Rush Logo
Gold Rush: Dave Turin's Lost Mine

Roco Hits Gold!

We are thrilled that our screening plant is featured on the popular Discovery Channel show, Gold Rush: Dave Turin’s Lost Mine. As big fans of the series already, we were excited to see the Roco X3 Rinsing screen make its television debut and can’t wait to see where Dave’s journey takes him.
Continue Reading

Key Features

  • Largest In Class Oversize Tail Belt (1,600mm) / 63″ Chevron
  • Impressive 8.7m³ Hopper As Standard
  • Folding Over Top Conveyors (Chevron)
  • True 16ft x 5ft Screening Area

Overview

×
×
×
×
×
×

Features & Benefits

  • Fixed Galvanized Work Platforms
  • Integrated Folding Side Conveyors
  • Large Engine Bay
  • Dropdown Rear Door Feed
  • Adjustable Throw
  • Sliding Feeder
  • Fast On Site Setup Time – 20 Minutes
  • Ground Level Maintenance

Spec Options

  • Steel Plate Apron Feeder
  • Screenbox Options (Finger Tines, Bofar Bars, Punch Plate, HD Mesh)
  • Radio Remote Control
  • Hydraulic Hopper Extensions
  • Dustbuster Air Cleaner

Power Unit Options

  • Tier 3A
  • Tier 4F
  • Stage 5
Contact ROCO

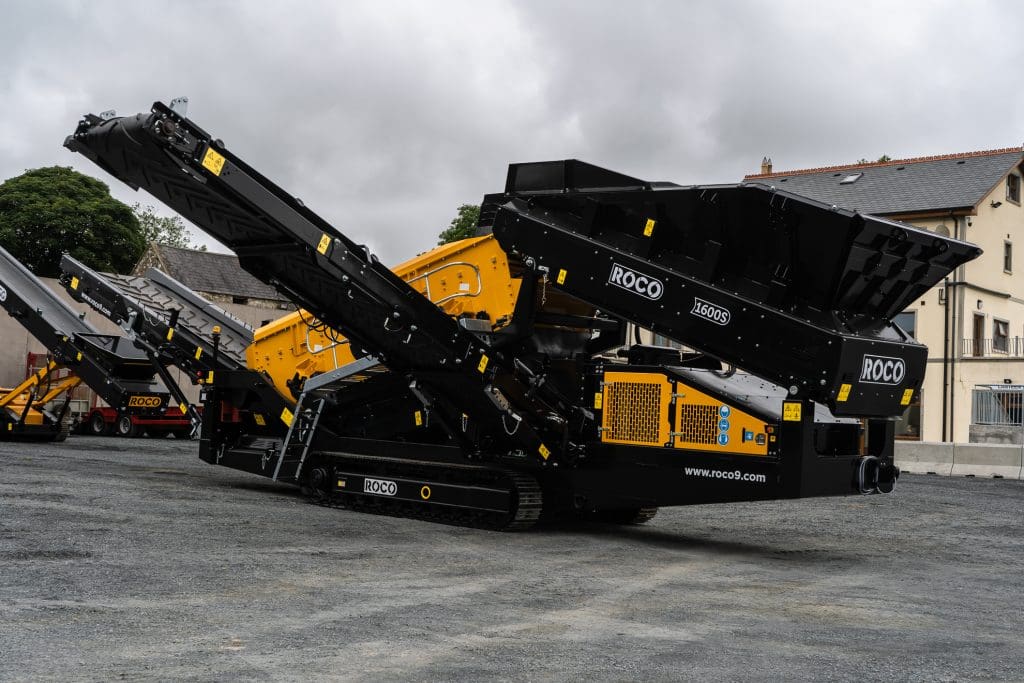

The Roco 1600S is a powerful high tonnage and high-demand scalping screen . With its large hopper, it can handle big volumes from wheel loaders, excavators, or direct from crusher feed with its drop-down rear door feed facility. With its optional steel apron feeder and a large selection of heavy-duty screening media, there is no scalp screening task the 1600S won’t take on.



Download Spec Sheet

Technical Specifications

Screenbox 4.88m x 1.52m (16ft x 5ft)
Hopper Volume 8.7m³ (11.3yd³)
Output Potential Up to 450TPH
Feeder Belt 1,400mm (55″)
Oversized Conveyor 1,600mm (63″)
